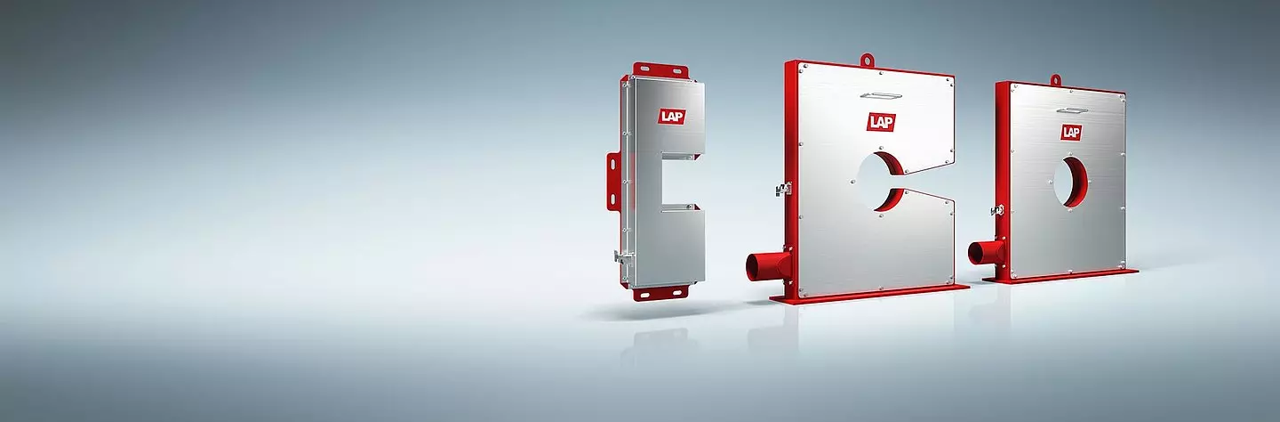

CONTOUR CHECK WIRE
Compact measurement system for steel wire and rods with small diameters
Key figures
A glowing hot wire is pulled through the rolling mill at about 120 meters per second during ongoing production. Speed, high temperatures and dirt are special challenges for a high-precision measuring system. Our solution is the CONTOUR CHECK WIRE. It is specially designed for the geometric measurement of wires, rods and rebar and, at 800 Hz, offers the optimum measuring rate for accurate data acquisition. In the uniaxial version, you can check the diameter; in the two- to three-axis version, the ovality can also be determined. The small dimensions and light weight allow a quick and easy integration of the CONTOUR CHECK WIRE into the existing line.
Wire and rod profile measurement in real time
15µm 45mm 1200°C 800Hz
accuracy measuring range max. material temperature measuring rate
Compact frame
With low costs and a compact design, the CONTOUR CHECK WIRE is precisely tailored to the needs of smaller factories.

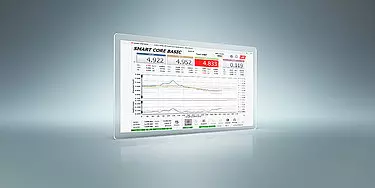

SMART CORE BASIC Software
Our software clearly presents the measurement results in real time and can be easily integrated into the existing IT structure.
Features of the CONTOUR CHECK WIRE
Temperature stable
The 2- and 3-axis CONTOUR CHECK WIRE is temperature stable. Even at material temperatures up to 1200 °C, the measurement system records accurate and reliable data.
❋ A Supportive SpaceTechnical data
CONTOUR CHECK WIRE 45-1 CONTOUR CHECK WIRE 45-2/3 C-Frame CONTOUR CHECK WIRE 45-2/3 O-Frame
Measuring range 45 mm 45 mm 45 mm
Accuracy (trueness) ±0,015 mm ±0,015 mm ±0,015 mm
Repeatability (precision) 0,004 mm 0,004 mm 0,004 mm
Material temperature ≤40°C ≤300°C ≤1200°C
Number of axes 1 2 or 3 2 or 3
Frame type C-Shape C-Shape O-Shape
Frame width 190 mm 620 mm 650 mm
Frame height 630 mm 718 mm 718 mm
Frame depth 82 mm 78 mm 78 mm
Passline height 315 mm 358 mm 358 mm
Frame weight 13 kg 53 kg 56 kg
Positioning system (optional) No Yes Yes
Blower No Yes Yes
Air cooling unit No Yes Yes
Pyrometer (optional) No No No Fast setup
Its simple application allows a short training period. After installing the software and connecting the cooling and PCs, the measurement can start immediately.
