CONTOUR CHECK SHAPE
3D measurement of rolled long products by means of laser light section sensors
Key Figures
The pioneering measuring system for optical contour measurement and surface defect detection on long products of your steel profile

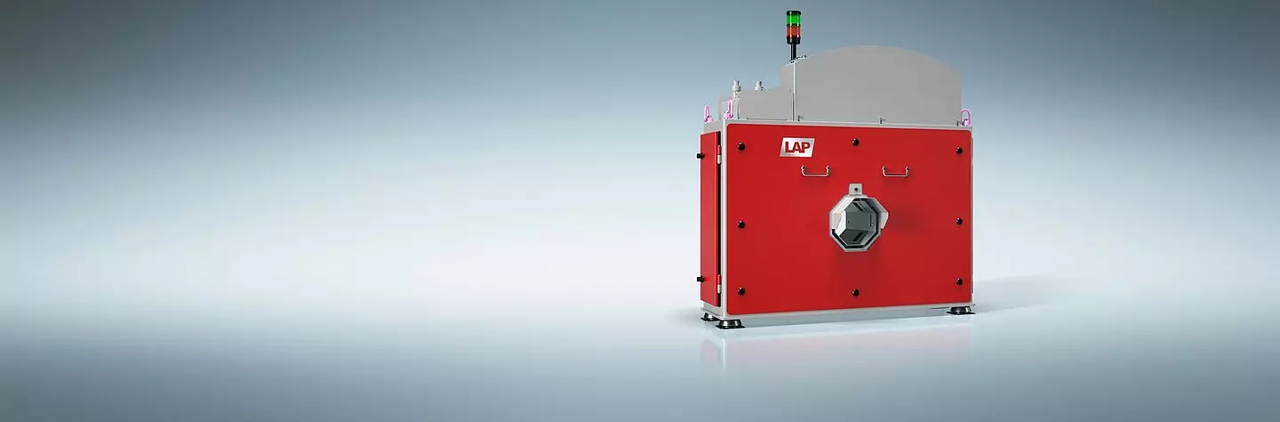

CONTOUR CHECK SHAPE has proven itself in hot rolling of long products and is an essential part of the rolling process in many factories. It checks hot and cold steel profiles with the help of three-dimensional surface reconstruction. It records dimensional errors due to rolling defects and surface defects such as rolling seams from calibre overfill, grooves, fire crack marks, rolling marks, and more.
The innovation lies in the optimized laser light section sensors, which LAP constructs with its own laser technique and high-end industry cameras. Four cameras observe the cross section continuously. The object to be measured is scanned lengthwise at a rate of up to 2000 Hz. The camera with high-speed image recording captures the laser line while the often still glowing steel enters the measuring field.
Regardless of the profile form (round, square, ...), the CONTOUR CHECK SHAPE supports your production process and verifiably reduces scrap. One additional feature is the precise measurement of rebar whereby measuring values like the contour of the core, the rib height and the weight per meter are accurately calculated.
360° 4 500mm 2000Hz
profile capturing cameras max. measuring range measuring rate

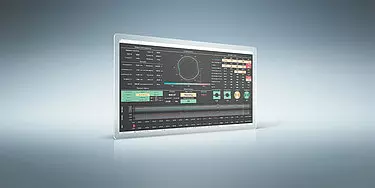

The software offers the unique functionality of virtually rotating a rotating and vibrating round profile into alignment of the rolling mill to directly measure the real rolling defect. You can also configure the user interface individually.
Features of the CONTOUR CHECK SHAPE
Software SMART CORE PRO
Quality control
Only quality material which meets your specifications leaves the factory, giving you full process control and increased efficiency.
Rolling defects recognition
The system automatically detects and classifies rolling errors so that the operator can make optimum adjustments to the rollers.
Surface defect detection
The evaluation of the surface quality enables the classification of the severity of the defects, marks the specific clusters and, if necessary, adjusts the material.
Technical data
CC SHAPE 50 CC SHAPE 100 CC SHAPE 150 CC SHAPE 250 CC SHAPE 500
Measuring range 50 mm 100 mm 150 mm 250 mm 500 mm
Accuracy (trueness) ± 0,015 mm ±0,025 mm ±0,040 mm ±0,065 mm ±0,100 mm
Repeatability (precision) 0,003 mm 0,006 mm 0,009 mm 0,015 mm 0,030 mm
Number of cameras 4 4 4 4 4
Frame width 1270 mm 1270 mm 1470 mm 1770 mm 2400 mm
Frame height 1280 mm 1480 mm 1680 mm 2170 mm 2590 mm
Frame depth 370 mm 470 mm 550 mm 640 mm 745 mm
Passline height 450 mm 540 mm 640 mm 780 mm 890 mm
Frame weight 355 kg 435 kg 585 kg 895 kg 1370 kg
Positioning system Yes Yes Yes Yes Yes
Blower Yes Yes Yes Yes Yes
Air and water cooling unit Yes Yes Yes Yes Yes
Pyrometer Optional Optional Optional Optional Optional
