4D EAGLE S
Measuring system for profile measurement and surface inspection of long products, using laser-light sectioning
Key figures
360°
Profile Capturing
4
Cameras
140mm Max.
measuring range
Cutting-edge laser measurement for optimized quality control in rolling mills
The 4DEAGLE S combines profile measurement and surface inspection for long products in one high-performance system – tailored to the needs of steel producers. Based on laser light section technology, the hybrid system identifies and classifies a wide variety of rolling defects while capturing complete profiles of the products.
Take your rolling mill to the next level of profile measurement and surface inspection, increasing transparency and efficiency in rolling processes.
The measuring gauge developed by LAP and KOCKS combines advanced hardware technology and modern software. Rolling mill managers can access comprehensive analysis and evaluation options that pave the way for continuous process optimization and quality control.
Features of the 4D EAGLE S
Profile measurement
The 4DEAGLE S offers maximum resolution, a 3D view of bars, and the highest measurement frequency for detecting the smallest defects.
Surface defects detection
The AI technology of machine learning can detect single and periodic surface defects and provides data-based recommendations for optimization.
Surface inspection
The powerful and user-friendly software enables precise visualization and efficient analysis of surface defects

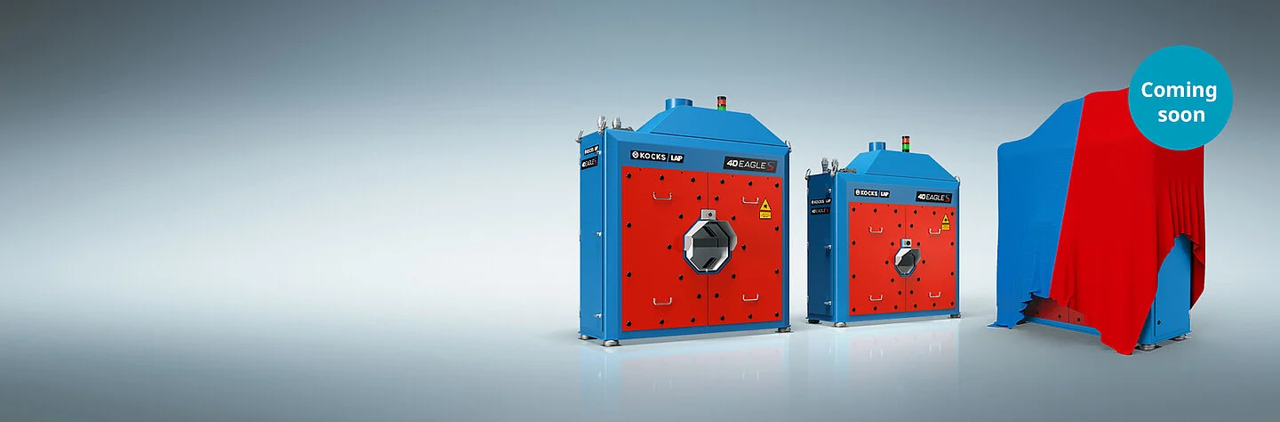

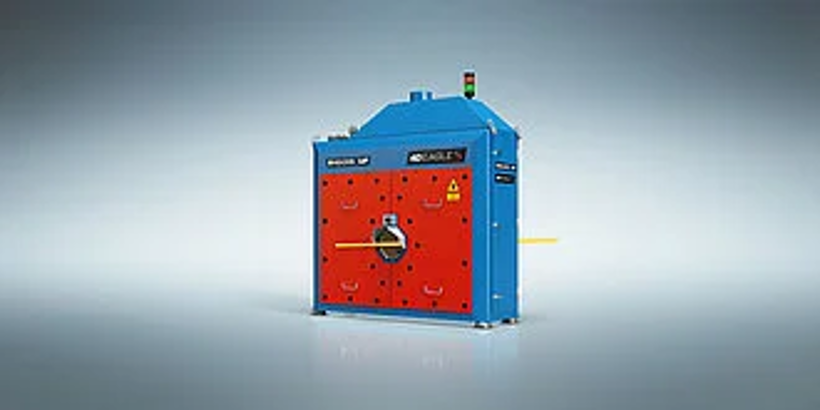

4D EAGLE S 50
System for measurement ranges of 50 mm
4D EAGLE S 120
System for measurement ranges of 120 mm (or 156 mm)

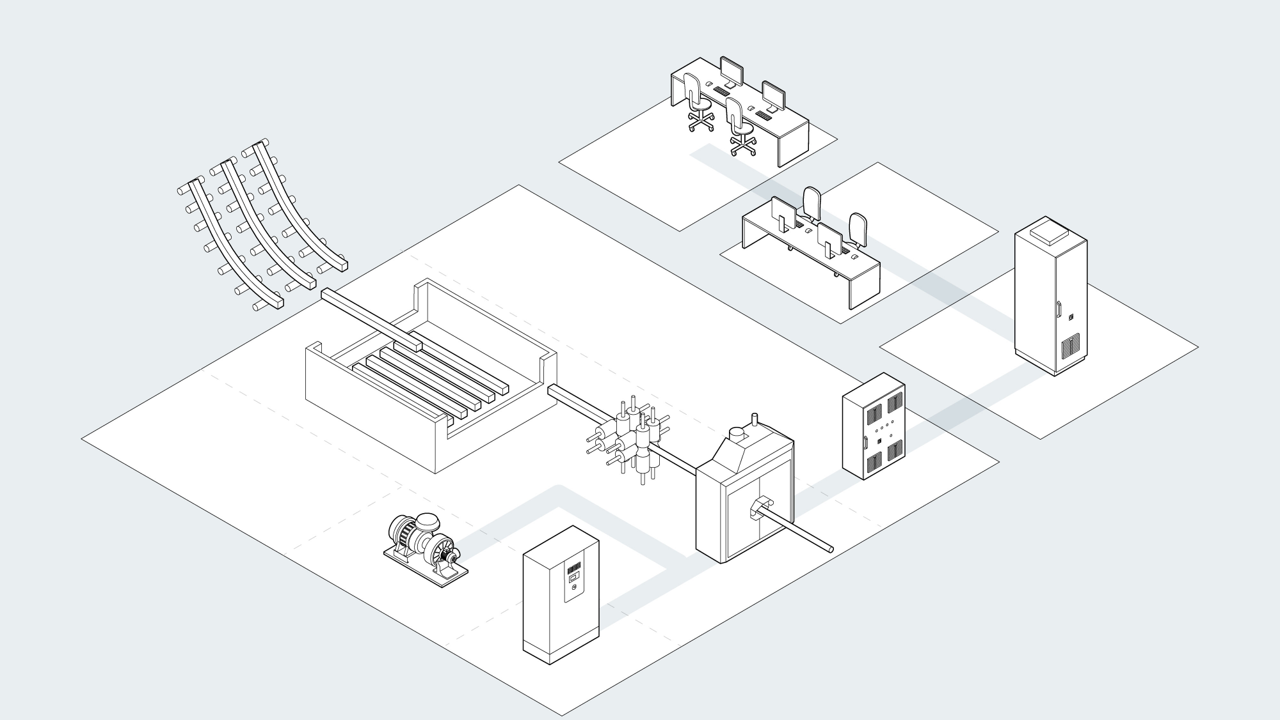

4D EAGLE S rolling process
Technical data
4D EAGLE S 50 4D EAGLE S 120 4D EAGLE S 200
Measuring range 50 mm 120 mm (or 156 mm) On request
Typical product size 4–40 mm 10-100 mm (up to 146 mm) On request
Accuracy (trueness) ±0.020 mm ±0.030 mm On request
Repeatability (precision) 0.003 mm 0.006 mm On request
Number of cameras 4 4 4
Frame width 1470 mm 1470 mm 1750 mm
Frame height 1580 mm 1730 mm 2070 mm
Frame depth 460 mm 550 mm 550 mm
Passline height 520 mm 640 mm 770 mm
Frame weight Approx. 530 kg Approx. 650 kg Approx. 900 kg
Positioning system Optional Optional Optional
Blower Yes Yes Yes
Air and water cooling unit Yes Yes Yes
Pyrometer Optional Optional Optional
